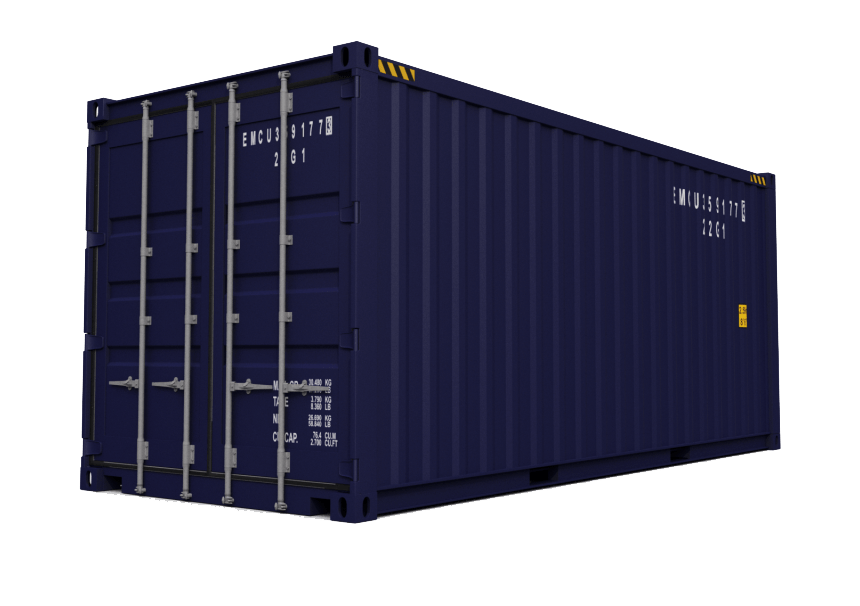

1. STANDARD CONTAINER
TYPE | INTERIOR DIMENSION | DOOR OPENING | TARE WEIGHT | CUBIC CAPACITY | CONTAINER PAYLOAD |
Standard-Container 20' | L: 5,870 mm W: 2,200 mm H: 2,350 mm | W: 2,140 mm H: 2,270 mm | 5,220 LBS 2,370 KGS | 1,172 CU.FT 33.2 CBM | 66,430 LBS 30,130 KGS |
Standard-Container 40' | L: 12,000 mm W: 2,200 mm H: 2,350 mm | W: 2,140 mm H: 2,270 mm | 8,774 LBS 3,980 KGS | 2.390 CU.FT 67.7 CBM | 62,875 LBS 28,520 KGS |
Standard-Container 40' high-cube | L: 12,000 mm W: 2,200 mm H: 2,350 mm | W: 2,140 mm H: 2,570 mm | 8,840 LBS 4,010 KGS | 2,694 CUFT 76.3 CBM | 62,810 LBS 28,490 KGS |

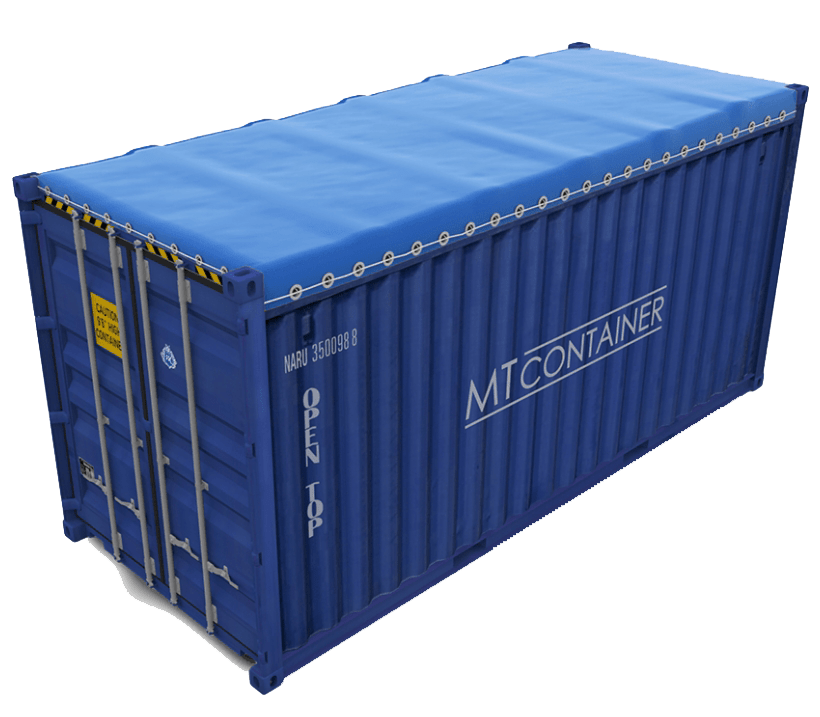

2. OPEN TOP CONTAINER
TYPE | INTERIOR DIMENSION | DOOR OPENING | ROOF OPENING | TARE WEIGHT | CUBIC CAPACITY | CONTAINER PAYLOAD |
Open-Top-Container 20' | L: 5,870 mm W: 2,200 mm H: 2,350 mm | W: 2,140 mm H: 2,270 mm | W: 2,230 mm H: 5,338 mm | 4,960 LBS 2,250 KGS | 1,149 CU.FT 32.5 CBM | 66,690 LBS 30,250 KGS |
Open-Top-Container 40' | L: 12,000 mm W: 2,200 mm H: 2,350 mm | W: 2,140 mm H: 2,270 mm | W: 2,230 mm H: 11,552 mm | 8,929 LBS 4,050 KGS | 2,359 CU.FT 66.8 CBM | 62,721 LBS 28,450 KGS |

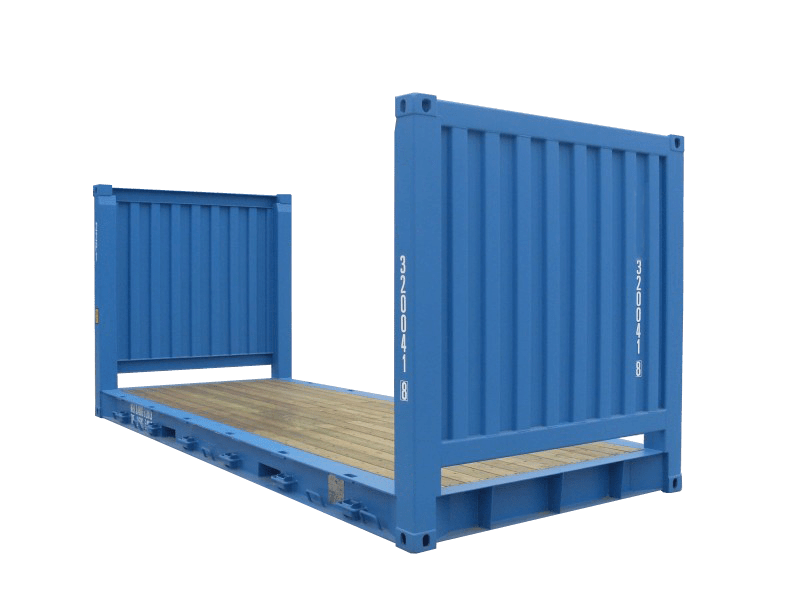

3. FLAT RACK CONTAINER
TYPE | INTERIOR DIMENSION | TARE WEIGHT | CONTAINER PAYLOAD |
Flatrack-Container 20' | L: 5,850 mm W: 2,438 mm H: 2,233 mm | 4,960 LBS 2,250 KGS | 66,690 LBS 30,250 KGS |
Flatrack-Container 40' | L: 12,086 mm W: 2,224 mm H: 1,981 mm | 8,929 LBS 4,050 KGS | 62,721 LBS 28,450 KGS |
Flatrack-Container 40' High-Cube | L: 12,048 mm W: 2,370 mm H: 2,258 mm | 13,120 LBS 5,950 KGS | 97,110 LBS 44,050 KGS |

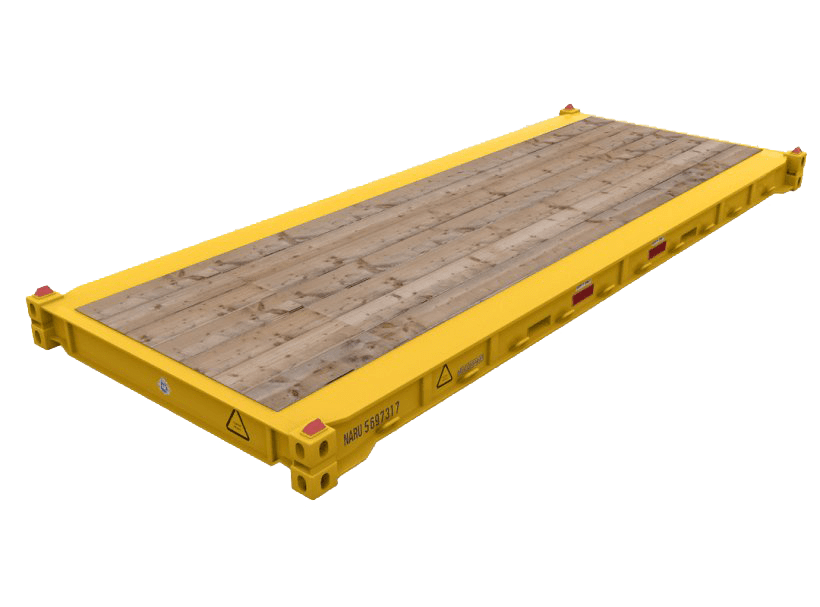

4. PLATFORM
TYPE | INTERIOR DIMENSION | TARE WEIGHT | CONTAINER PAYLOAD |
Platform 20' | L: 6,058 mm W: 2,438 mm | 6,480 LBS 2,940 KGS | 81,700 LBS 37,060 KGS |
Platform 40' | L: 12,192 mm W: 2,438 mm | 13,120 LBS 5,950 KGS | 97,110 LBS 44,050 KGS |

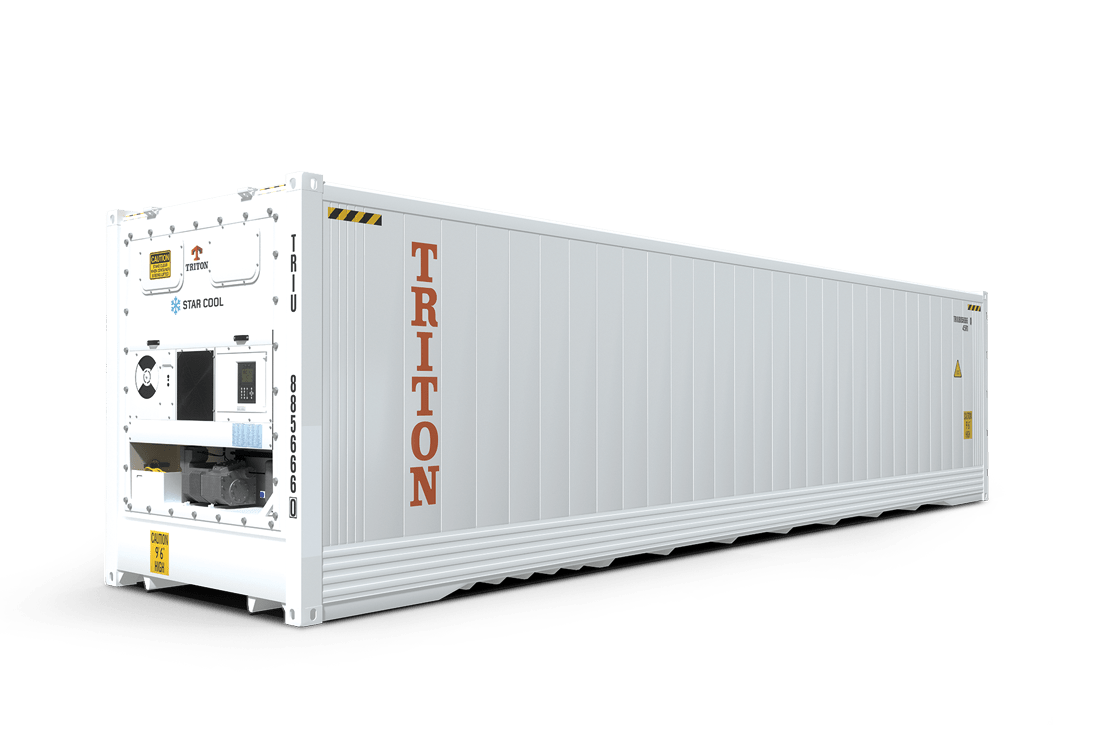

5. REFRIGERATED CONTAINER
TYPE | INTERIOR DIMENSION | DOOR OPENING | TARE WEIGHT | CUBIC CAPACITY | CONTAINER PAYLOAD |
Refrigerated-Container 20' | L: 5,535 mm W: 2,284 mm H: 2,224 mm | W: 2,290 mm H: 2,264 mm | 6,400 LBS 2,905 KGS | 1,014 CU.FT 28.7 CBM | 60,800 LBS 27,575 KGS |
Refrigerated-Container 40' | L: 11,563 mm W: 2,294 mm H: 2,161 mm | W: 2,288 mm H: 2,188 mm | 10,140 LBS 4,600 KGS | 2,120 CU.FT 60.0 CBM | 64,820 LBS 29,400 KGS |
Refrigerated-Container 40' High-Cube | L: 11,583 mm W: 2,286 mm H: 2,420 mm | W: 2,290 mm H: 2,569 mm | 9,080 LBS 4,120 KGS | 2,359 CU.FT 67.36 CBM | 65,870 LBS 29,880 KGS |
